Technical details
Product
|

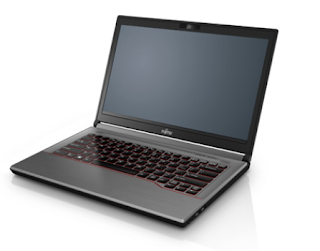

LIFEBOOK E546
|
Operating system
|
Windows 10 Home
Windows 10 Pro Windows 7 Professional 64-bit |
Chipset
|
Integrated
|
Processor
|
Intel® Core™ i5-6300U processor, 3
MB, 2.4 GHz, up to 3.0 GHz
|
Supported capacity RAM (max.)
|
32 GB, 2 Memory slot(s) DIMM (DDR4)DDR4 - 2133
MHz
|
Hard disk drive
|
SATA, 5,400 rpm, 1 TB, 2.5-inch, S.M.A.R.T.
SATA, 5,400 rpm, 500 GB, 2.5-inch, S.M.A.R.T. SATA, 7,200 rpm, 500 GB, 2.5-inch, S.M.A.R.T. SSHD, 5,400 rpm, 500 GB / 8 GB SSD Cache, 2.5-inch, S.M.A.R.T. SSD SATA III, 128 GB, 2.5-inch SSD SATA III, 128 GB, 2.5-inch, OPAL capable SSD SATA III, 256 GB, 2.5-inch SSD SATA III, 256 GB, 2.5-inch, OPAL capable SSD SATA III, 512 GB, 2.5-inch, OPAL capable |
Interfaces
|
1 x DC-in
1 x Audio: line-in / microphone 1 x Audio: line-out / headphone 2x digital microphones (array) x Internal microphones 3 (1 with Anytime USB Charge functionality) x USB 3.0 total 1 x VGA 1 x DisplayPort 1 x Ethernet (RJ-45) 1 x Docking connector for Port Replicator 1 x Kensington Lock support 1 (optional) x SmartCard slot 1 x SIM card slot ( only for models with integrated 3G/UMTS or 4G/LTE module ) 1 (SD up to 2GB, SDHC up to 32GB, SDXC up to 128GB) x Memory card slots |
Display
|
35.6 cm (14-inch),LED backlight,(Full
HD),Anti-glare IPS display,compound,1,920 x 1,080 pixel,700:1,300 cd/m²
35.6 cm (14-inch),LED backlight,(HD),Anti-glare display,compound,1,366 x 768 pixel,350:1,200 cd/m² |
Graphics brand name
|
Intel® HD Graphics 520
|
Camera
|
Built-in webcam, HD (Microsoft®
Lync™)
|
Weight
|
from 1.9 kg - Incl. weight saver. Weight may
vary depending on actual configuration.
from 4.2 lbs |
Dimensions (W x D x H)
|
338 x 231 x 25.1 - 31.4 mm
13.3 x 9.09 x 0.98 - 1.23 inch |
Runtime battery
|
up to 12 h
|
Battery notes
|
Battery runtime information is based on
worldwide acknowledged BAPCo® MobileMark® 2014 (office
productivity). Refer to www.bapco.com for additional details.
The BAPCo® MobileMark® Benchmark provides results that enable direct product comparisons between manufacturers. It does not guarantee any specific battery runtime which actually can be lower and may vary depending on product model, configuration, application and power management settings. The battery capacity decreases slightly with every re-charge and over its lifetime. |
Audio codec
|
Realtek ALC255
|
Audio features
|
Stereo speakers
|
3G/4G (optional)
|
Sierra Wireless EM8805
LTE Sierra Wireless EM7305 |
WLAN (optional)
|
Intel® Dual Band Wireless-AC8260
11ac with integrated Bluetooth 4.1
|
Antennas
|
2 Dual band WLAN antennas, 2 UMTS/LTE antennas
optional
|
LAN
|
10/100/1,000 MBit/s Intel® I219V
|
Modular drive options
|
Weight saver
SuperMulti-format DVD burner (with double layer support) |
Special features
|
Family concept (AC adapter, port replicator,
modular bay elements), Modular bay ( 2nd HDD, DVD Super Multi, Weight Saver
|
